Barrel Vacuum

ATI55H-3

$2,865.62

The 3 motor vacuum head converts your 55 gallon barrel/drum into a large capacity vacuum.

On Backorder until early January 2025.

Compare VacuumsSeries Matrix

Available on backorder

  • HEPA Filtration
UPC: 8 38067 00343 2 Categories: , , ,

The Atrix Barrel Vacuum; ATI55H-3 is a great option for manufacturing, construction, or other applications where large amounts of non-hazardous dry particulate needs to be collected. The 3 motor vacuum head converts your 55 gallon barrel/drum into a large capacity vacuum. The triple 500 watt motors allows the user to control the amount of suction needed by switching on 1, 2, or all 3 motors.  It is a safe vacuum used in general cleaning with its efficient two stage HEPA filter configuration. The two stage HEPA filter configuration consists of one HEPA premotor filter and a polyester pre-treated filter bag that goes over the main premotor filter.

Barrel Vacuum by Atrix
28′ Power Cord
ATIBV55-MH – Triple Motor Head
ATIBV55-DA – Barrel/Drum Adapter
ATIBCVH1- Premotor HEPA Filter Cartridge, Main
ATIBCVSF- Polyester Pretreated Filter for Main HEPA Filter

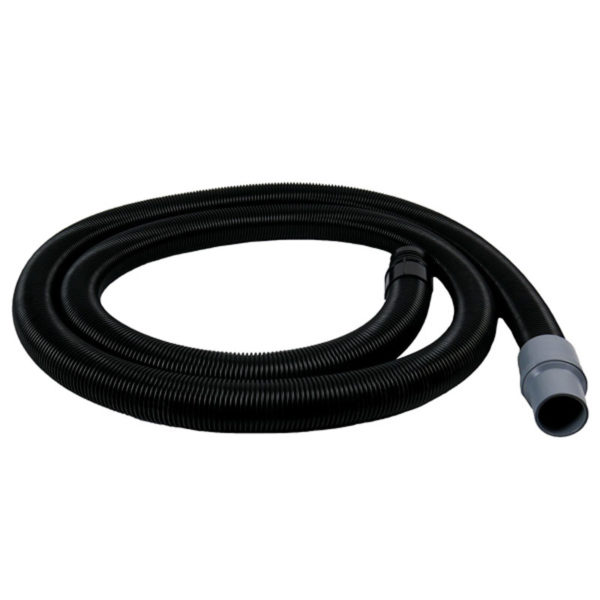

ATIBV55-12 12′ Hose w/Ends
ATIBV55-WS- 3 Piece Chrome Wand Set
ATIBV55-FT – Floor Tool

Power 120V
Watts 500 Watts, x 3
CFM 89, 178 or 267
Hose Diameter Inside 2.00"
Hose Diameter Outside 2.33"
Shipping Weight 94 lbs
Shipping Dimensions 34 × 26 × 38 in

Product Specifications

  • ESD Safe
  • Immediate Containment
  • Cleanroom
  • Ultrafine Filtration
  • HEPA Filtration
  • ULPA Filtration
  • 400Hz Power
  • Pest Control
ESD Safe
ESD safe (electrostatic discharge) provides static path to ground and is used in static sensitive environments.
Immediate Containment
All particulate is contained within pleated media made from Pentair and sealed with plastic housing and filter plug. Ideal for easy changeouts and eliminates risk of exposure to hazardous materials.
Cleanroom
Ideal for cleanroom applications, including Class 100 Cleanroom (ISO 5) or Class 100,000 (ISO 8), designed to meet cleanroom standard.
Ultrafine Filtration
Ultrafine Filtration is 88% Efficient at .3 microns or larger. It can handle even the finest color toner, magenta.
HEPA Filtration
HEPA (High Efficiency Particulate Air) is 99.97% Efficient at .3 microns or larger.
ULPA Filtration
ULPA (Ultra Low Penetration Air) is 99.999% Efficient at .12 microns or larger.
400Hz Power
Avionics/Airplane Servicing where 400 Hertz is required
Pest Control
Atrix manufactures vacuum cleaners for pest control applications.
×
